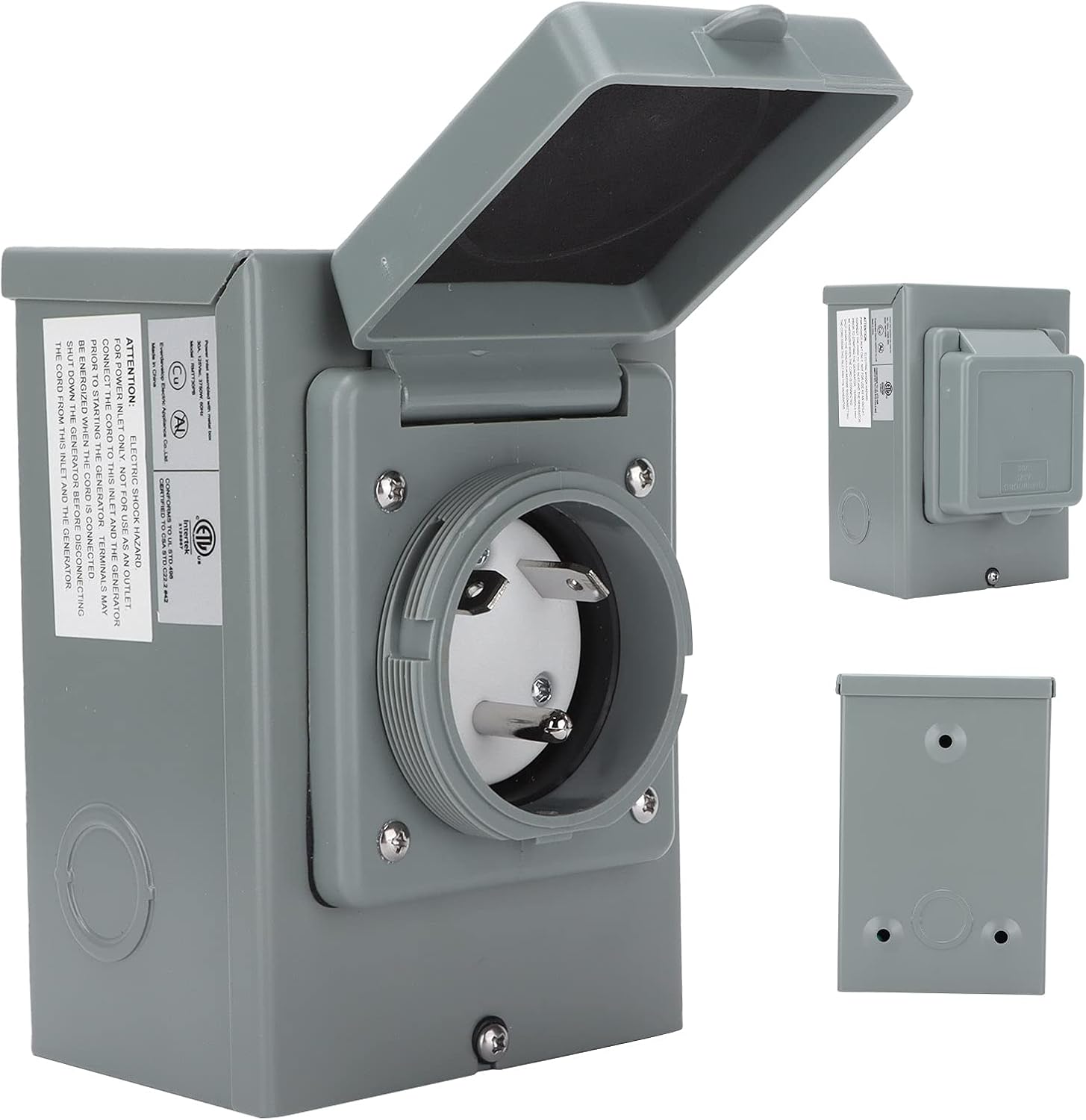

Yctze 30A Generator Power Inlet Box for RV - 125V 3750W Socket, Outdoor Use

Specification: Item Type: Power Inlet Box Material: Steel Plug: -30P Current: 30A Voltage: 125V Power: 3750W Voltage Parameter How to Use Use the three holes provided on the back of the cabinet to install the power outlet in a convenient location outside the building. Using only copper wires and an approved wiring method, connect the wires through an opening in the cabinet to the junction box located near the transfer switch. If using a catheter, pull at least three colors. Maximum wire gauge: 10AWG, strip 3/5 inch (15mm) of wire insulation (do not tinned conductor), and then connect the wire to the power input box. Ensure that there is no wire insulation on all terminals, and use an electric crossed to tighten the inlet terminal screws to a of 35 inch pounds. Package List 1 x Power Inlet Box 2 x Manual Note Only compatible with ‑30P Male to ‑30R Female Dogbone Electrical Converter.

• Versatile Compatibility: This 30A 125V 3750W power inlet box is exclusively designed to work seamlessly with 30A generator lines, making it ideal for RVs, marine settings, and other outdoor applications. Its compatibility with both RV and marine power cords ensures you have reliable access to power, wherever you go.
• User-Friendly Design: Featuring a lock ring design, this power inlet box simplifies the connection of RV and marine power cords. With four installation areas (left, right, bottom, and back), it offers bility and ease when mounting, helping to optimize space and accessibility in your setup.
• Robust Weather Protection: The flip cover acts as a protective when the inlet is not in use, effectively keeping out rain, dust, and debris. This weatherproof feature is essential for outdoor environments, ensuring your power source remains safe and functional under various weather conditions.
• Sturdy Construction: Built from premium steel, this power inlet box is engineered to withstand harsh outdoor conditions. Its rugged, rust- design ensures that it can endure exposure to the elements while maintaining reliability for all your power needs.
• Simple Installation Process: The power inlet box comes with easy-to-follow instructions, making installation straightforward even for those with limited expertise. Just use the three holes on the back for mounting and follow the wiring guidelines to connect securely, ensuring optimal performance and efficiency.
