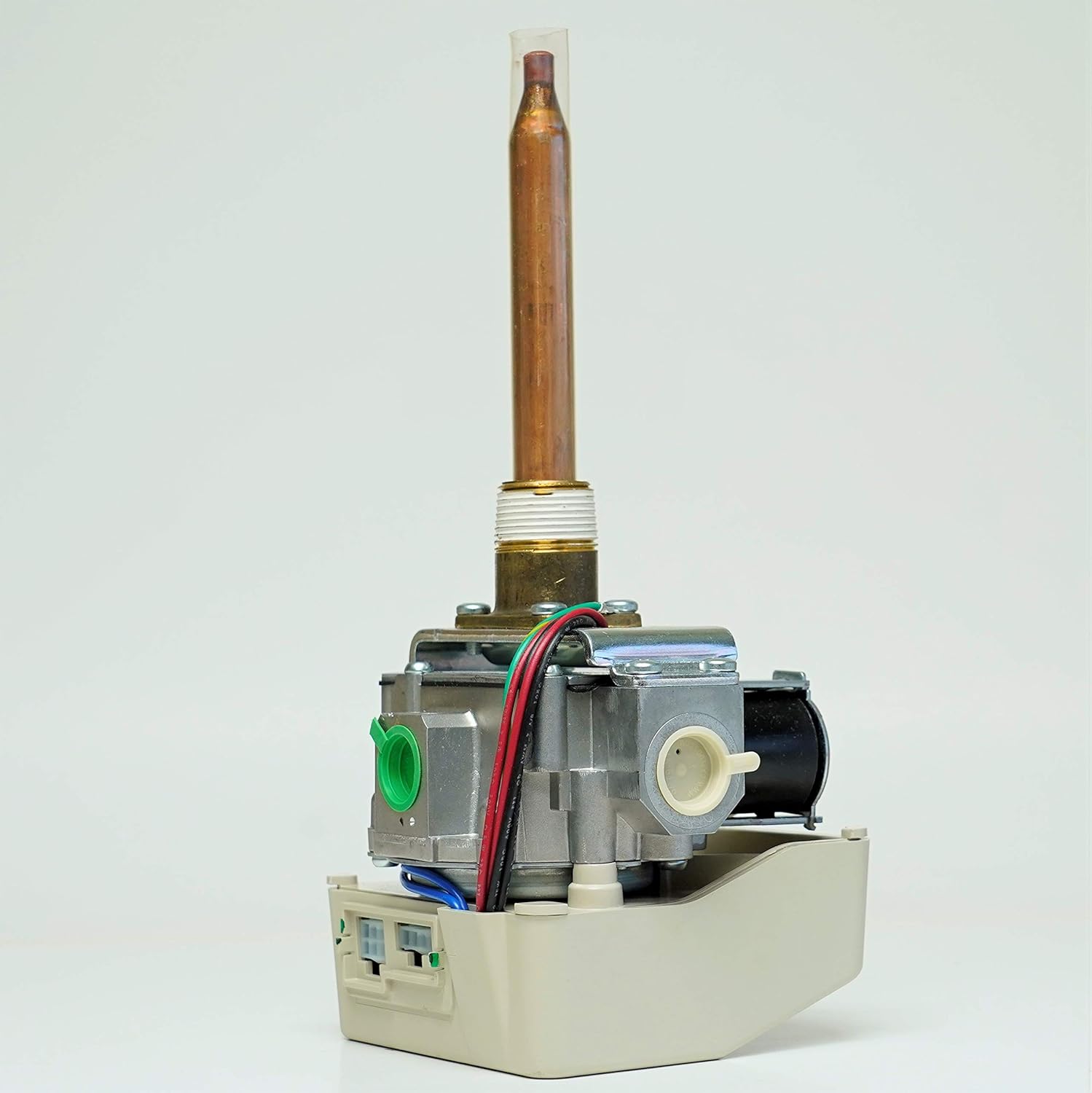

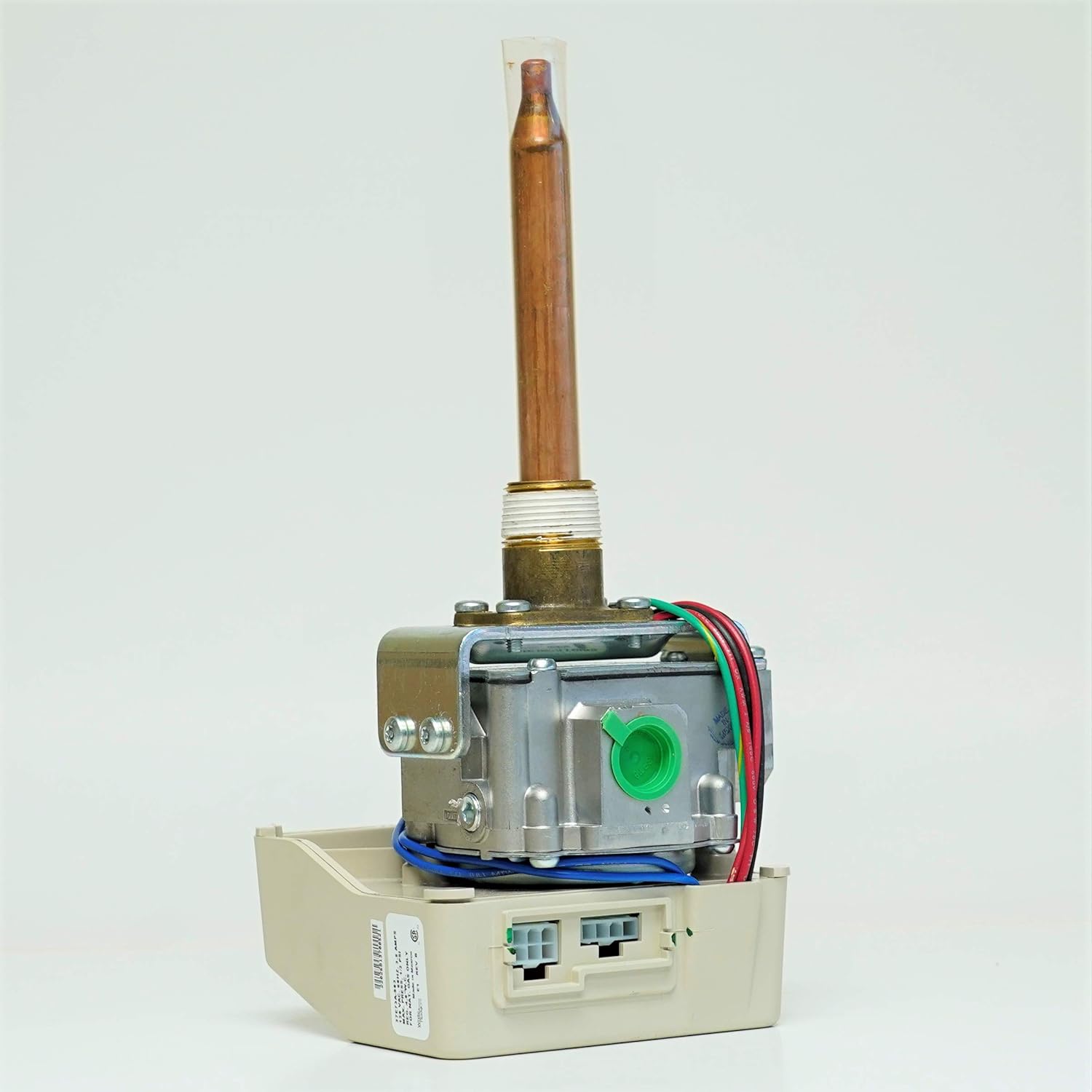

White-Rodgers 37E73A-903 Gas Water Heater Thermostat Control Intelli-Vent Valve For Natural Gas Only
Product details
| Management number | 219360165 | Release Date | 2026/05/03 | List Price | $52.58 | Model Number | 219360165 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
White-Rogers number 37E73A-903 Water Heater Control Combination Gas, Ignition and Thermostat Controls Replacement for A. O. Smith 184960 and State Industries 9003691005 For Use With Natural Gas Only Features:INTELLI-VENT combines gas, ignition and thermostat into one controlRight angle with 1/2 inch N.P.T. inlet and 1/2 inch inverted flare outlet70 to 160 rangeRegulation range 20,000 to 150,000 BTU'sNatural gas onlySpecifications:Regulator Setting: 4.0inch W.C. Nat. GasTemperature Range: 70 to 160FOperating Voltage: 120 Vac, 60 HZAmperage: Inducer Motor 3.0 FLA, 4.0 LRA, Ignitor 2.0Range of Regulation (BTU/Hr.): 30,000 - 150,000 BTU/Hr.1.0 inch Pressure Drop Capacity: 100,000 BTU/Hr. (1000 BTU/ft3, 0.64 specific Gravity Natural Gas)Maximum Inlet Pressure: 1/2 PSIMaximum Inlet Pressure: 1/2 PSIThe Intelli-Vent control is a combination gas valve, ignition control and thermostat for use on Power Vented water heaters. The microcomputer in the control supervises the ignition sequence and timings for the water heater, and provides diagnostic codes in case of system malfunction. The control provides direct burner ignition using the White Rodgers Silicone Nitride Ignitor. The control uses INTELL-IGNITION technology to greatly extend the ignitor's life.Fixed Adjustment Regulator Controls: The gas regulator on this control requires no field service. The regulator automatically controls and maintains the burner gas pressure.
- Replacement for 37E73A-903
| UPC | 786710553424 |
|---|---|
| Color | White |
| Shape | Rectangular |
| Voltage | 30 Volts |
| Backlight | No |
| Brand Name | White-Rodgers |
| Model Name | White-Rodgers 37E73A-903 |
| Unit Count | 1.0 Count |
| Display Type | analog |
| Manufacturer | White Rodgers |
| Model Number | 37E73A-903 |
| Power Source | Natural Gas |
| Material Type | Metal, Plastic |
| Mounting Type | Surface Mount |
| Product Style | Classic |
| Control Method | Touch |
| Controller Type | Push Button |
| Specification Met | UL |
| Additional Features | Intelli-Ignition |
| Included Components | 1 x Water Heater |
| Manufacturer Part Number | 37E73A-903 |
| Temperature Control Type | automatic |
| Specific Uses For Product | Heater |
| Global Trade Identification Number | 00786710553424 |
