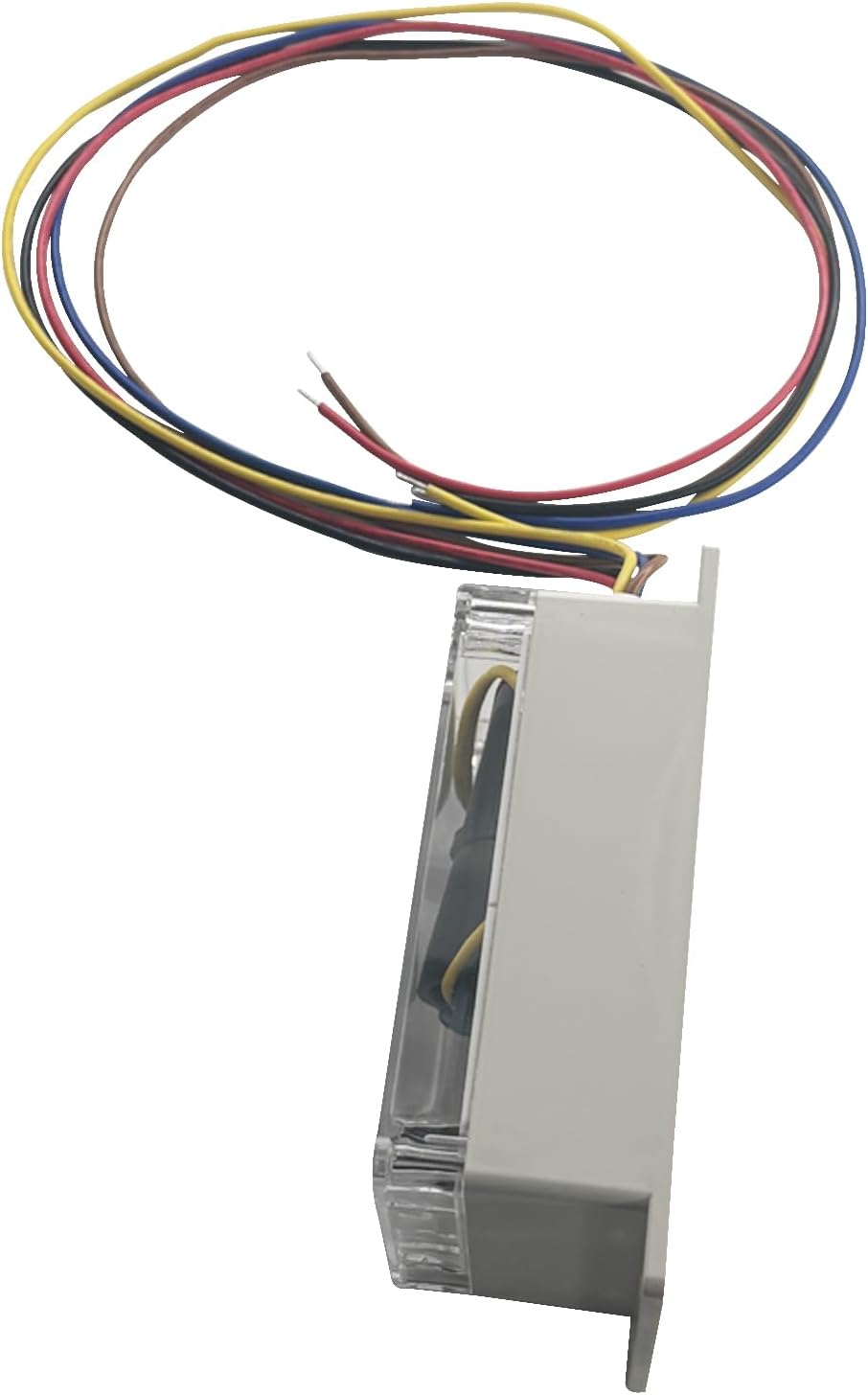

Soft Start Kit Replacement for RV Campers Air Conditioner RV Enables Easy Start an A/C & Appliances on RV Power with a Small Generator

Package Includes:1*Soft Starter5*Tie Straps4*Screw1*Wire Connector1*Double Sided Adhesive Tape1*Product ManualCharacteristic:The product can reduce the vibration and noise of the air conditioning compressor, bringing you a better sleep experience and effectively extending the service life of the air conditioning.The product intelligently adjusts the starting voltage of the compressor/motor, effectively reducing surges and surge currents during the starting process, greatly reducing the power consumption of the on-site AC power system, but still providing complete starting torque for the compressor and motor.Specifications:Nominal Working Voltage: 110Vac(90-135Vac)/220Vac(187-266Vac), singleMaximum continuous working voltage: 135VacMaximum continuous working current: 18AOver Current limit: 30A/1 minuteMaximum non-repetitive inrush current: 170A (<20 ms)Maximum surge current: 120A(<350 ms)Soft start-up time: 1±0.5sCurrent consumption: 48ma(Capacitive 110Vac, 220Vac)Power consumption: less than 3WOperation hours: better than 45000 hours (rated working temperature)Effective soft start on/off service: >100000 times (soft-start interval not less than 3 minutes).

• [Working Voltage]: 110Vac (90-135Vac)/220Vac (187-266Vac)
• [Function]: The product's function is to gradually increase from 0 to the rated voltage, thereby making the starting process smoother. Effectively reduce the surge and surge current during the start-up process, thereby avoiding tripping, melting, and even fire caused by overload
• [Material]: This product adopts high-quality dust-proof and flame-retardant ABS material shell.
• [Advantages]: The internally installed overload and short circuit protection functions help maintain smooth and safe operation.
• [Installation]: 5 wires are required for easy installation. (The product comes with a detailed instruction manual)
