Mini ATS Automatic/Manual Transfer Switch 4P 63A AC220V, Home Generator Manual Transfer Switches for Uninterruptible Power Supply, 3Phas Dual Auto Power Electrical Selector Switch DIN Rail Mount G2R
Product details
| Management number | 215636383 | Release Date | 2026/04/12 | List Price | $18.00 | Model Number | 215636383 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Functions and Features: ATS transfer switches G2R is a PC-level infrequent switching switch, mainly used for automatic or manual conversion of two power supplies, and can test whether the common power supply or backup power supply is normal. It can switch power supply （can be city power grid and inverter power supply）in 0.05 seconds to build uninterruptible power supply. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuirty, reliability,and safety of power supply. When the normal power supply is normal, it will automatically switch back from the backup power to the normal power supply
- Automatic Mode: To use the automatic mode, make sure the left switch must be in Auto and the right handle must be in Ⅰ. When the normal power supply (Ⅰ) is normal, ⅠU (green light) is always on; when the normal power supply (Ⅰ) is abnormal, ⅠU (green light) goes out and switches to the automatic power supply (Ⅱ) within 0.05 seconds, ⅡU (red light) is on.When the normal power supply (Ⅰ) returns to normal, it will automatically switch from the backup power supply (Ⅱ) back to the normal power supply.
- Manual Mode: To use the manual mode, make sure the left switch is in Manual. If you choose power supply (Ⅰ), manually operate the right handle to make the switch in (Ⅰ), ⅠU (green light) is on; if you choose power supply (Ⅱ), manually operate the right handle to make the switch in (Ⅱ), ⅡU (red light) is on

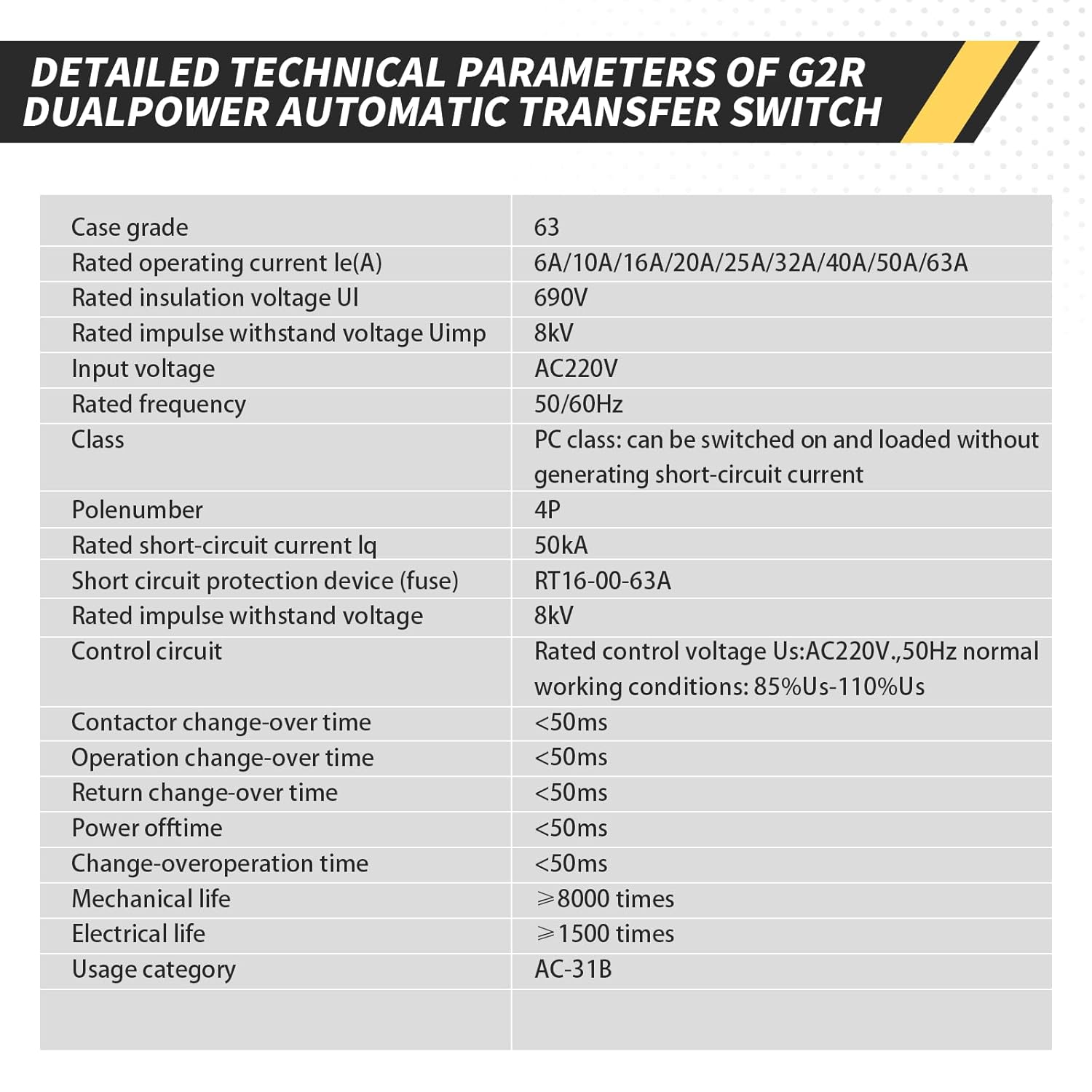

- 220V ATS Micro Transfer Switch: mini ats transfer switch cnc G2R 4P , the input terminal can be connected to 1 neutral wire (N) 3 live wires (L), designed for home track installation, dedicated to PZ30 distribution box. This series of automatic transfer switches is suitable for 50/60Hz dual power grid. The working current is between 6A-63A. 220V/50Hz Undervoltage value: 175V Recovery value: 195V Overvoltage value: 260V Recovery value: 240V (± 5V). Please select the product with the corresponding specifications according to the actual working voltage you need
- Wide Application: This 4P dual power ATS ensures a stable power supply, it is used in situations where power outages cannot be sustained,which is very suitable for high-demand equipment; used in hospitals, low-temperature cold storage, data centers and emergency systems, it can automatically and quickly switch to the backup power supply during the power outage of the main power supply to ensure safe and reliable power supply. Suitable for indoor and outdoor generators
- Quality assurance and worry-free after-sales: Made of high-quality PA6, it is lightweight but sturdy. we provides a 30-day no-reason return and a 3-year warranty for this product to ensure that you have a worry-free shopping experience. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to contact us.
