Genuine Trombetta 12V Winch Motor Solenoid Switch Kit for Lippert LCI 118246 & Keystone RV Camper Leveling Systems & Slide-Outs, Hydraulic Pump, Dual-Polarity Reversing, 214-1231-A61-06

Technical Specifications & Performance Data This assembly utilizes the Genuine Trombetta 214-1231-A61-06 Reversing Polarity Contactor, engineered for high-vibration mobile environments.Manufacturer: Trombetta (OEM)Model Number: 214-1231-A61-06Circuitry: DPDT (Double Pole Double Throw) Motor ReversingVoltage: 12V DCContact Material: Silver Alloy (A61 Series) for High Inrush ResistancePeak Inrush Current: 500 AmpsContinuous Current Rating: 75 Amps (5 Minute Sustain)Duty Cycle: Intermittent (20% Sustained)Terminals: (4) 5/16"-24 High-Current Studs; (2) 1/4" Spade Control TerminalsIngress Protection: Sealed housing resistant to dust and liquid sprayOperating Temperature: -40°C to +85°CCompatibility & Cross-Reference Guide This unit is a direct regulatory and dimensional replacement for specific OEM part numbers used in hydraulic pump assemblies for RV slide-outs, leveling jacks, and marine lifts. It is designed to fit the mounting footprint and wiring configuration of the following systems:Replaces Lippert Components (LCI) Part Number: 118246Replaces Sea Legs Part Number: SEA-102Compatible with Trombetta Part Numbers: 214-1231-A61, 214-1231-A61-06Application Compatibility:RV Hydraulic Power Units: Fits pump assemblies in Fifth Wheels, Travel Trailers, and Motorhomes (Class A, B, C). Compatible with systems used by brands such as Keystone, Forest River, Jayco, Grand Design, Winnebago, Thor Motor Coach, Coachmen, Tiffin, and Newmar.Marine Applications: Compatible with Pontoon Hydraulic Sea Legs and Shore Station Lifts requiring 12V reversing logic.Industrial Equipment: Compatible with 12V DC Tarp Systems (such as Aerotarp, Roll-Rite, Donovan), ATV/UTV Winch Motors, and Snow Plow Hydraulic Packs.FalconSupply Installation Kit Contents This kit provides the necessary verified hardware to ensure a secure, vibration-resistant electrical connection, critical for high-amperage DC circuits.(1) Genuine Trombetta 214-1231-A61-06 Solenoid: Authentic OEM component.(4) 5/16"-24 Serrated Flange Nuts: Zinc-plated steel. The serrated face bites into the contact surface to prevent loosening caused by road vibration or pump operation.(1) AGS Dielectric Connector Protector: 4g Packet. Prevents voltage leakage, arcing, and environmental corrosion on spade terminals and high-current studs.

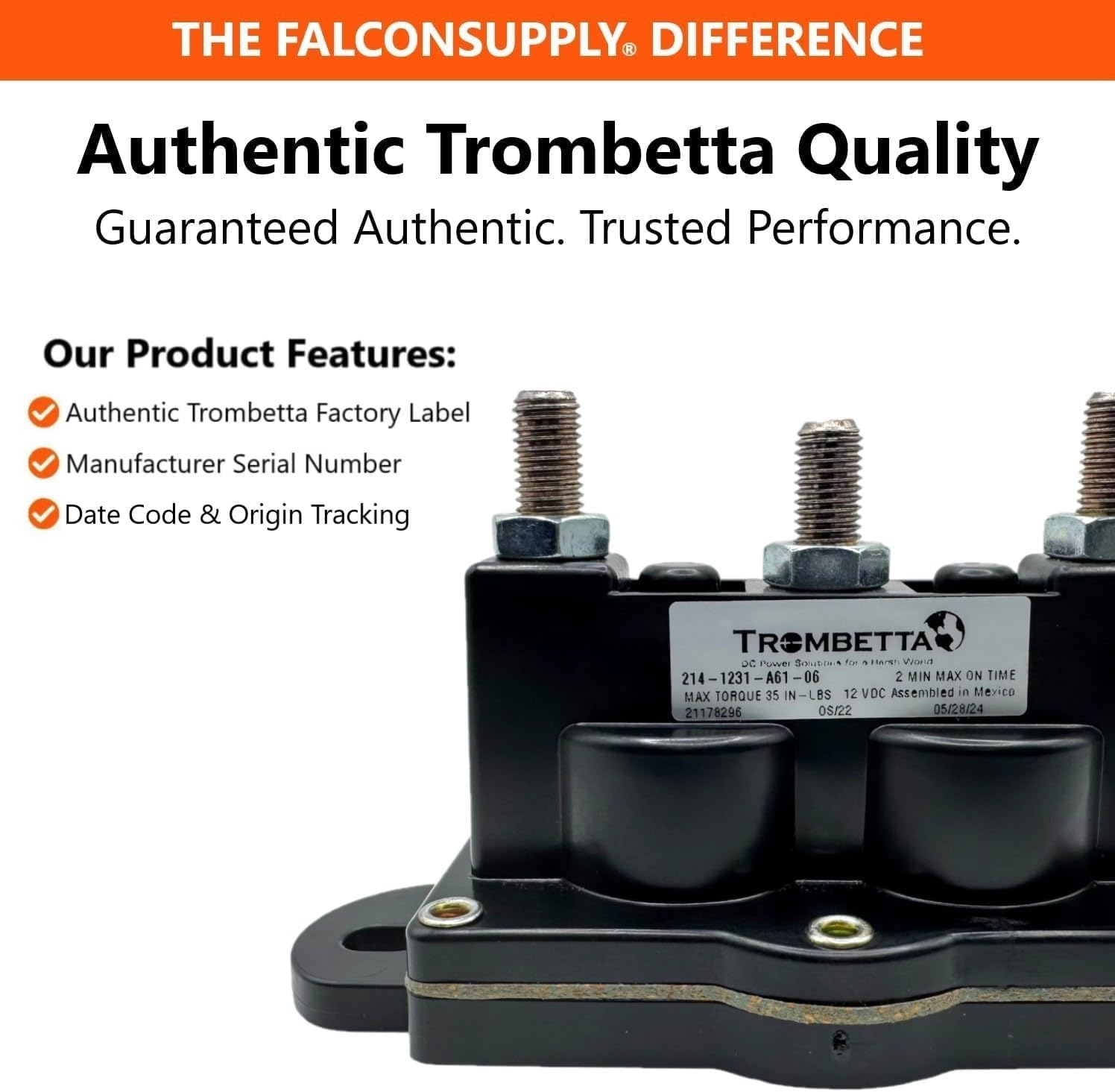

• GENUINE TROMBETTA OEM COMPONENT: Contains the authentic OEM Trombetta Reversing Polarity Contactor 214-1231-A61-06, identical to the hardware supplied by Lippert Components (LCI) and Sea Legs. This is not a generic aftermarket clone. Features DPDT (Double Pole Double Throw) 12V DC circuitry designed for Permanent Magnet motors. Engineered with A61 Silver Alloy contacts to handle High Inrush currents (500 Amps Peak) and Sustained loads (75 Amps Continuous for 5 minutes). The IP66-rated plastic housing resists dust, liquid spray, and vibration.
• REPLACES LIPPERT LCI 118246 FOR RV SLIDE-OUTS: Specifically calibrated for compatibility with Lippert Components Part Number 118246 used in RV hydraulic power units. Fits hydraulic pump assemblies for slide-out rooms and automatic leveling jacks on Fifth Wheels, Travel Trailers, and Motorhomes. Compatible with hydraulic systems found in manufacturers such as Forest River, Keystone, Jayco, Grand Design, Winnebago, Thor Motor Coach, and Coachmen. Restores functionality to extending and retracting slide rooms and leveling gear.
• COMPATIBLE WITH SEA LEGS SEA-102 MARINE LIFTS: Replaces Sea Legs Part Number SEA-102 utilized in pontoon boat lift systems. Designed to withstand intermittent duty cycles required for marine hydraulic pumps and shore station lifts. The reversing polarity configuration controls the up/down motion of hydraulic cylinders on boat hoists and canopy lifts. The sealed construction protects internal copper and silver components from humid, saline, and dockside environments common to marine power packs.
• FOR 12V TARP SYSTEMS, WINCHES & PLOWS: Functions as a heavy-duty reversing relay for 12V DC reversible motors on dump truck tarping systems, ATV/UTV winches, and snow plow hydraulics. Compatible with systems from Aerotarp, Roll-Rite, and Donovan that require DPDT switching. Replaces older setups using two separate SPDT solenoids with a single integrated unit. Ideal for automotive 12V applications requiring motor direction reversal on industrial equipment and light-duty trucks.
• FALCONSUPPLY INSTALLATION KIT: Kit includes (1) Genuine Trombetta 214-1231-A61-06 Solenoid, (4) 5/16"-24 Zinc-Plated Serrated Flange Nuts, and (1) Packet of AGS Dielectric Connector Protector. The serrated hardware bites into the terminal surface to ensure vibration-proof connections essential for high-current battery and motor leads. The included AGS dielectric grease prevents voltage leakage, arcing, and corrosion on the spade terminals and studs, ensuring long-term reliability in exposed chassis mounting locations.
