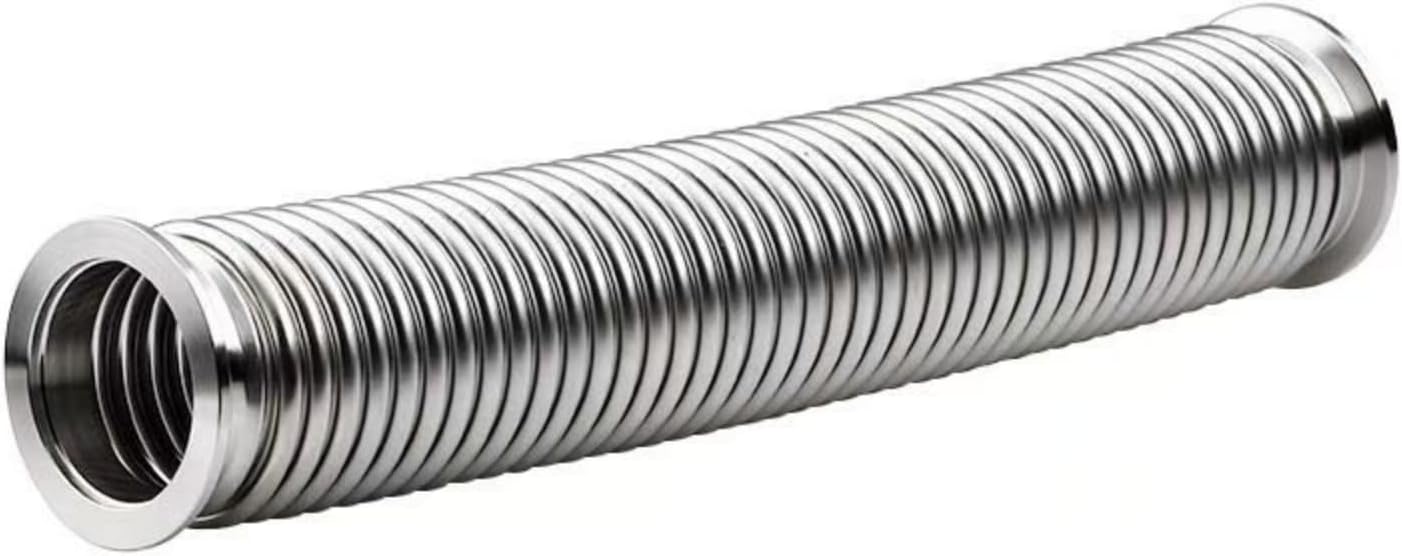

1pcs KF-50 Bellows Hose - 58.05" (1500 mm) SS304 Flexible Vacuum Corrugated Pipe with ISO-KF Flange NW-50(100mm)

Specifications:ISO-KF Flange Size: NW-50Common Dimensions: A = 9.84" (250mm) /5.91 "(150 mm)/7.87 "(200 mm)/3.94 "(100 mm）/11.81 "(300 mm)/15.75 "(400 mm)/19.86 "(500 mm)23.62 "(600 mm)/31.49 "(800 mm)/39.37 "(1000 mm)/58.05 "(1500 mm)/78.74"(2000 mm)/98.43 "(2500 mm)/118.11 "(3000 mm)/137.80 "(3500 mm)/157.48 "(4000 mm)/196.85.11 "(5000 mm)ISO-KF Flange Size: KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50.The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp.The clamp provides enough sealing force to fully compress the O-Ring, so that the flanges and the centering ring are metal to metal. Thin wall stainless steel vacuum hose has a 0.15 mm hose wall allowing it to be compressed. It has already passed the helium leakage test.Thin wall hose is offered in 100 to 5000 mm unsheathed lengths with NW16 to NW 50 size ISO-KF flanges on each end.

• 58.05" (1500 mm) KF-50 bellows hose made from durable SS304 stainless steel for long-lasting performance in vacuum applications.
• devised with ISO-KF flange size NW-50, compatible with various flange sizes including KF-16, KF-25, KF-40, ensuring versatile installation options.
• Features a thin wall devise with a 0.15 mm hose wall, allowing for easy compression and flexibility, ideal for tight spaces and complex configurations.
• Successfully passed helium leakage tests, ensuring reliable sealing and performance for critical vacuum systems.
• Available in a range of lengths from 100 mm to 5000 mm, providing customizable solutions for all your vacuum piping needs.
